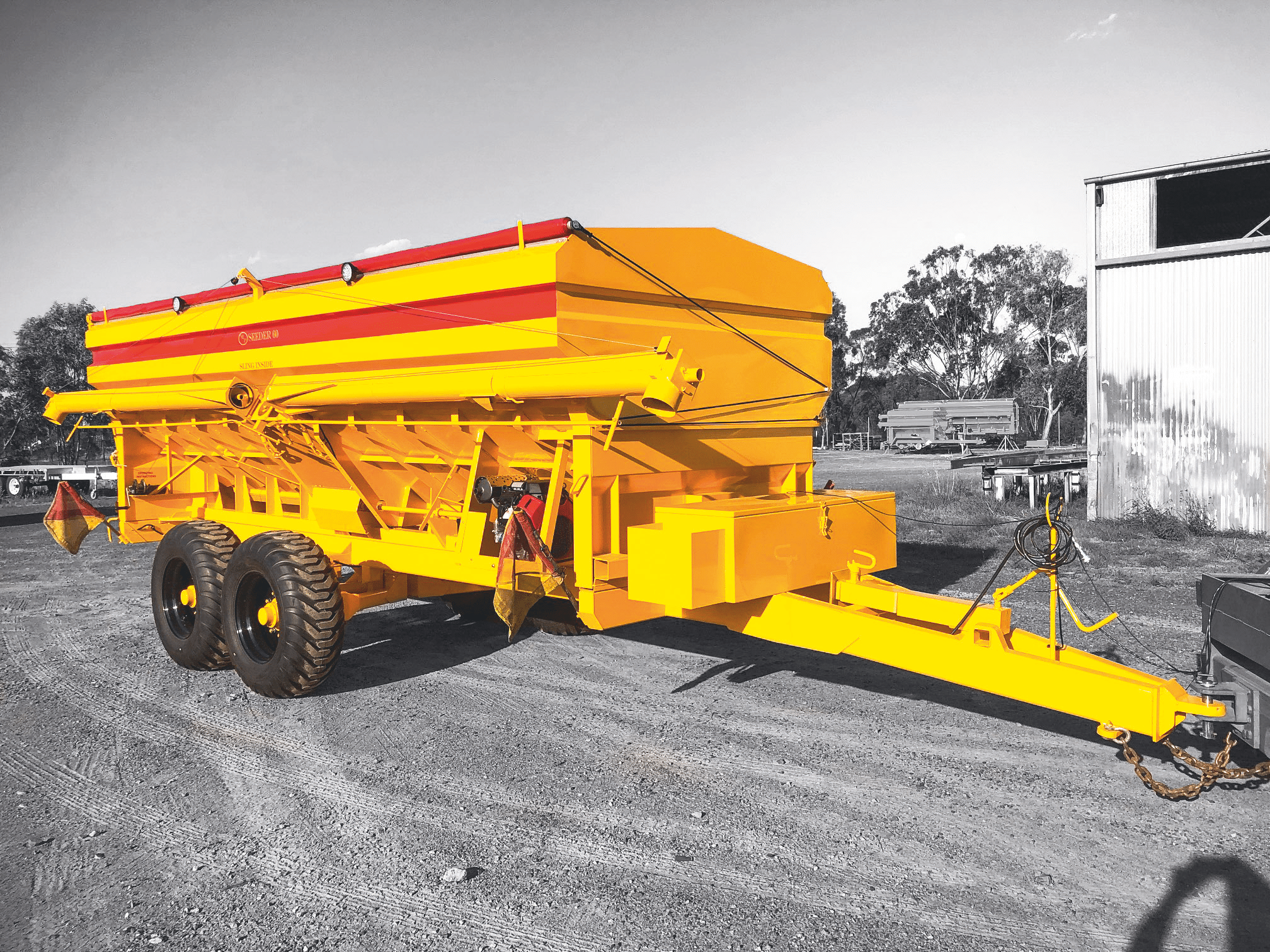

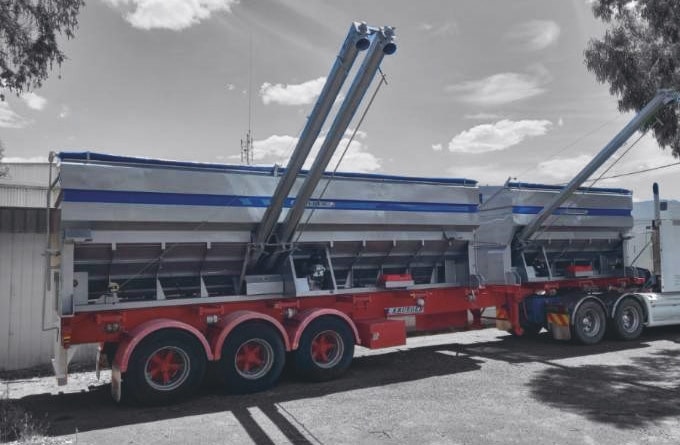

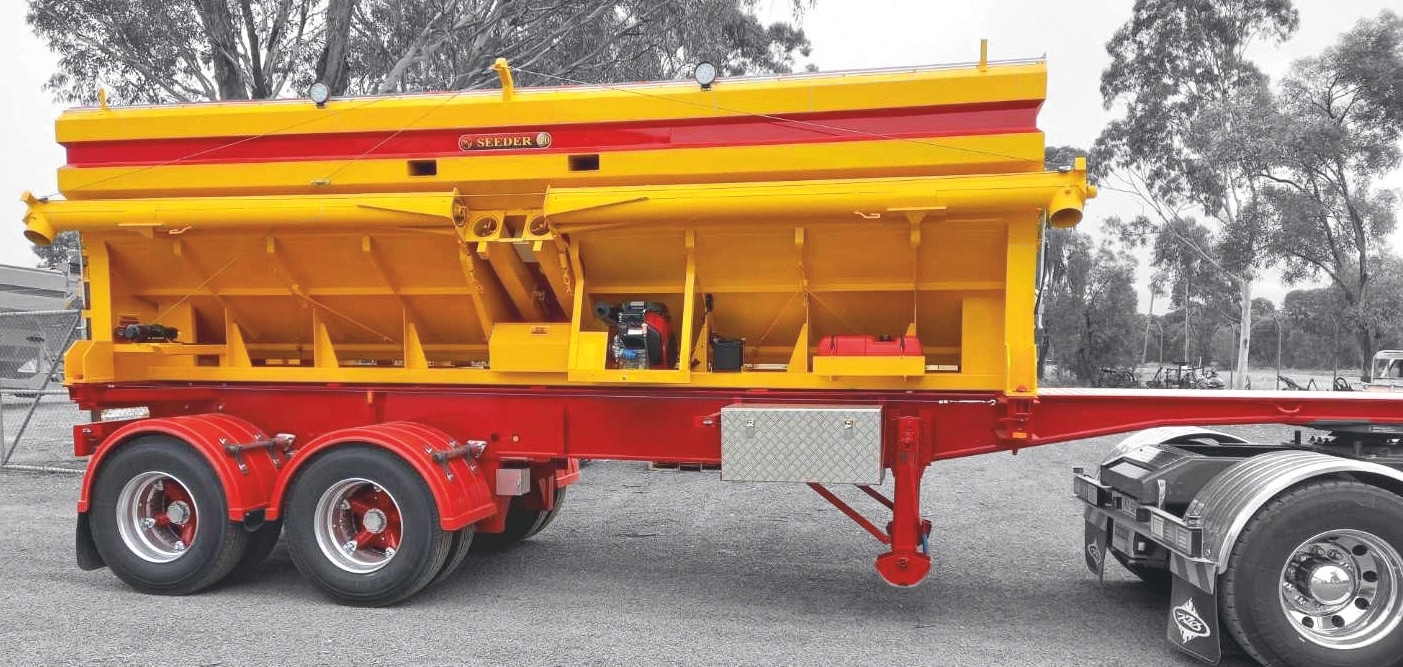

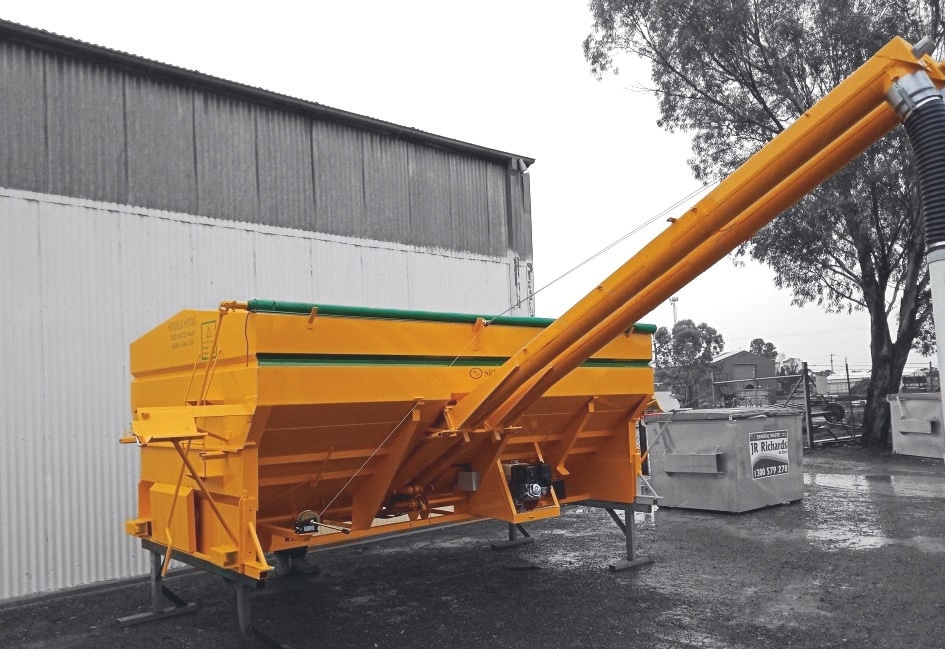

MP SEEDER RANGE
4.2M / 4.8M / 5.4M / 6.0M / 7.2M / 9.0M / 12.0M
WHY THE MP SEEDER?
- Handle seed and fertiliser
- Quality materials and components
- For filling feeders
- For filling seeders/combines
- Made to customer specifications
- Easy clean trap doors
- Heavy duty PVC lined auger (ideal for fertiliser)
- Honda 13hp up to 24hp (option of 37 EFI hp upgrade)
- Australian steel
FEATURES
Twin bin
PVC lined auger
13hp – 37hp Van Guard Honda Motors
Outload rate 600 – 1000 hp
Roll top tarp
Heavy duty frame base
MEASUREMENTS
HEIGHT FROM GROUND
2.9m standard auger 3.6m
3.5m extended auger 3.95m
Reach Out
2.9m extended auger 2.35m
3.5m extended auger 2.85m
Measurements are a guide only and may not be actual. All measurements are to centre of auger outlet.
Side of seeder tank at top to centre of auger outlet. Tray height = 1.25m (ground to top of tray).
OPTIONS
Extra LED light on end of auger
Remote electric actuators
Extended augers
2 into 1 side discharge chute
Extended high sides
Wireless remote auger winch
Bin combination
(45/55, 50/50, 60/40 split)
LED work lights x 2
Custom paint colour
Pickler kit
Fork slippers
Support stands (hobbs hoist)
Anchor points for skel trailer
Walking Beam options from 4.2 – 9 meters
